We seem to be doing more and more dry camping... We added a full Solar system
to help with this boondocking and it has been great but there are a few times, like camping in heavy woods or overcast skies where the solar
couldn't keep up with the demands, or if we wanted to run the AC on a particularly hot day, we need to run the generator.
As we know Generators produce poisonous gasses and we don't like the fact that these gasses can drift into ours or other RVs so we built a Genturi
This is a fairly easy project with lots of documentation here: Home made Genturi
Parts list:
1 - 10' x 3" Thin wall PVC (cut to 2')
4 - 3" thin wall connectors
1 - 8' x 3/4" x 1/8" Aluminum bar
1 - 1.5" 90° EMT Conduit sweep
2 - 1.5" Conduit connectors
2 - Mechanical suction cups
1 - Can Plastic Spraypaint
Stainless Bolts and nylock nuts, Aluminum Rivets

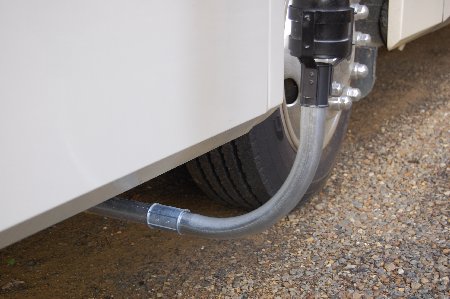

90* Sweep extension pipe and basket made from aluminum:

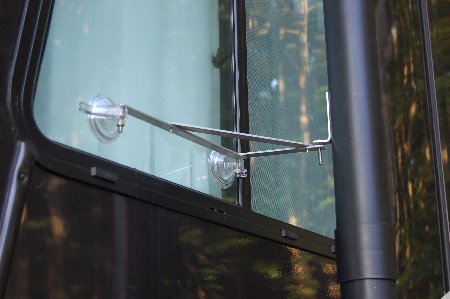

Window A frame and suction cups:

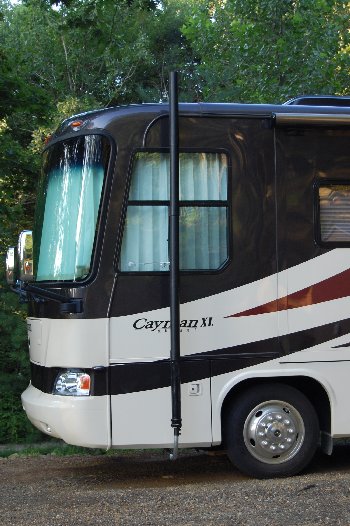

Full View of system:
I am very pleased with the outcome and recommend this upgrade to other.
|
|
|
